TECHNICAL SPECIFICATIONS
|
Application |
It can be used for water, oil, and gas. |
|
Valve construction |

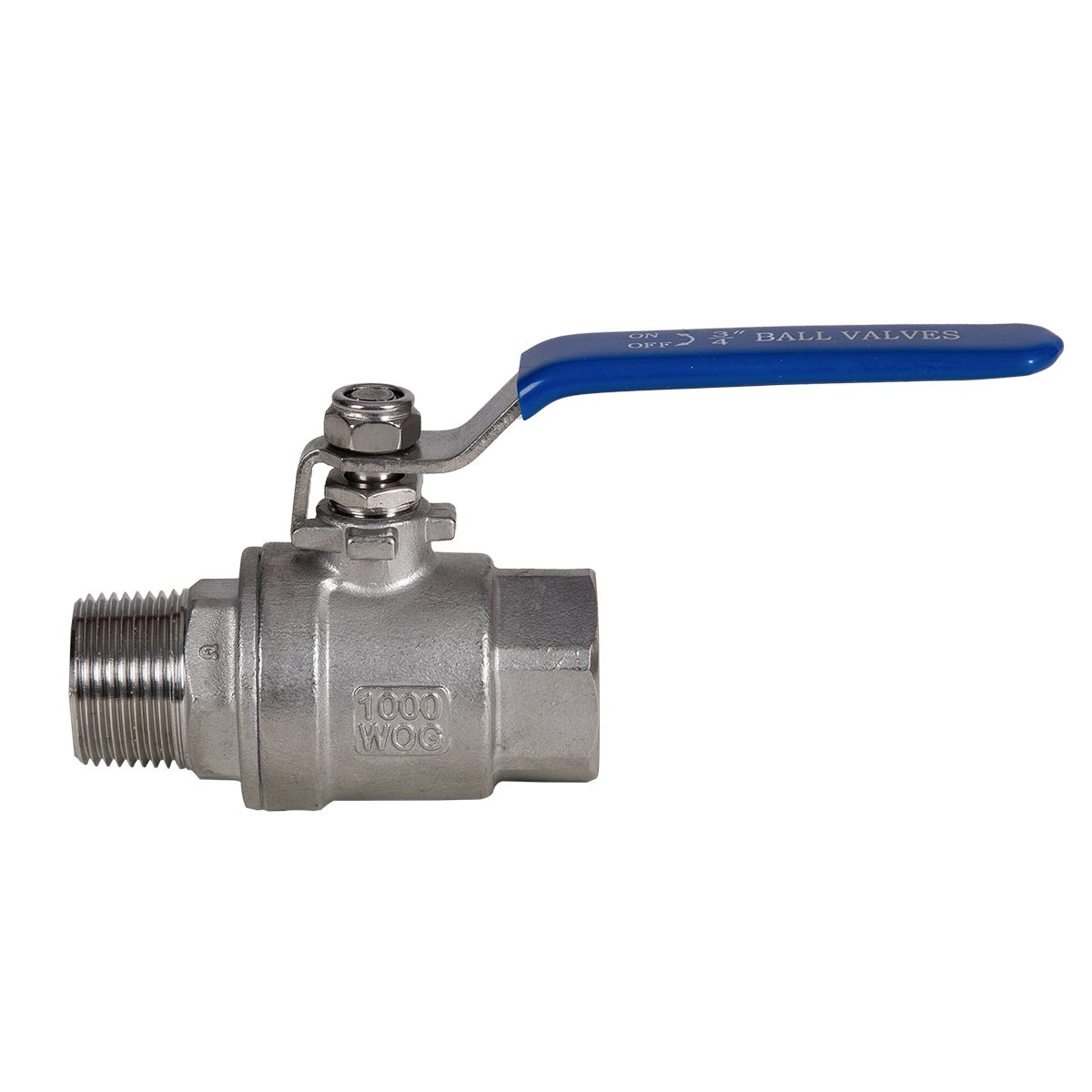

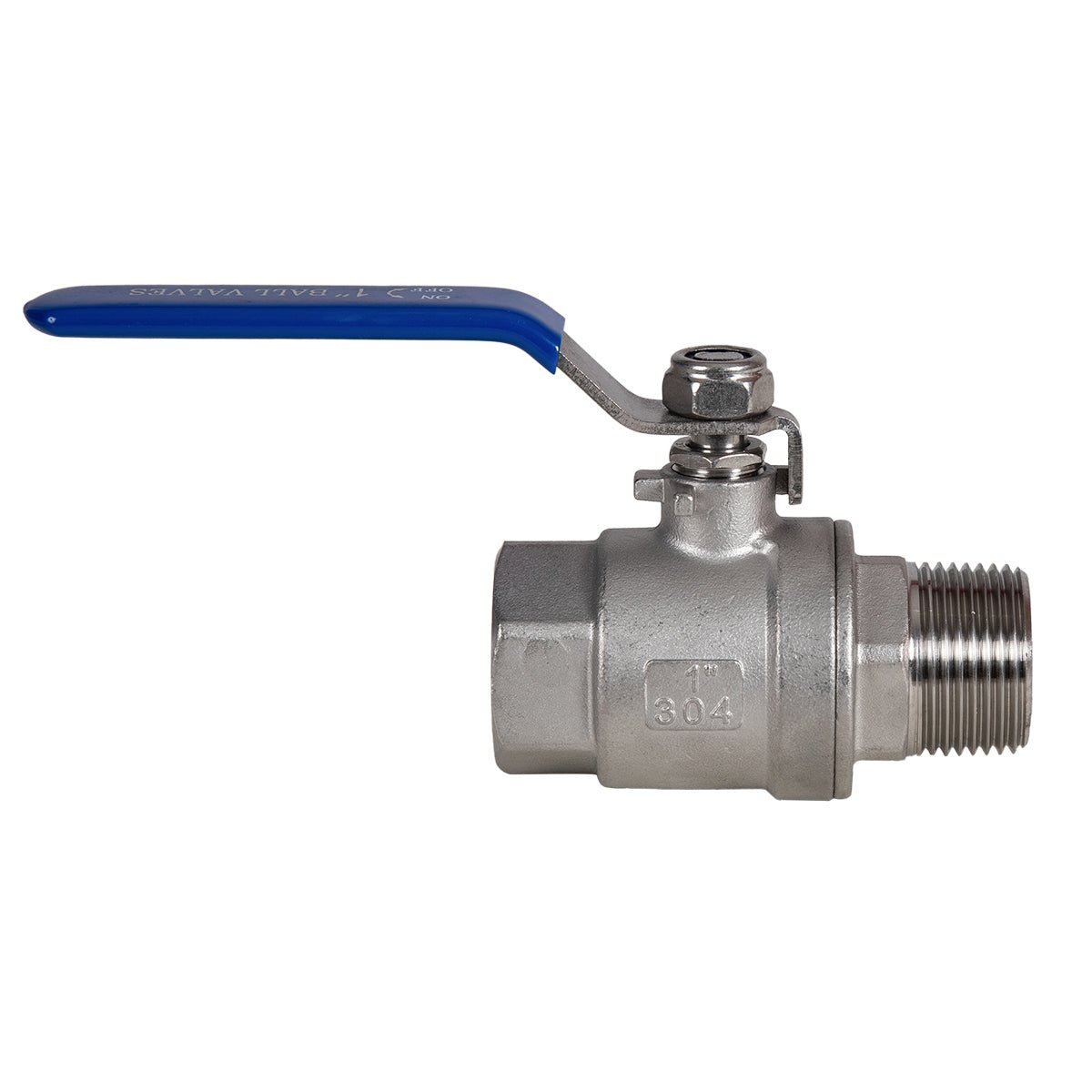

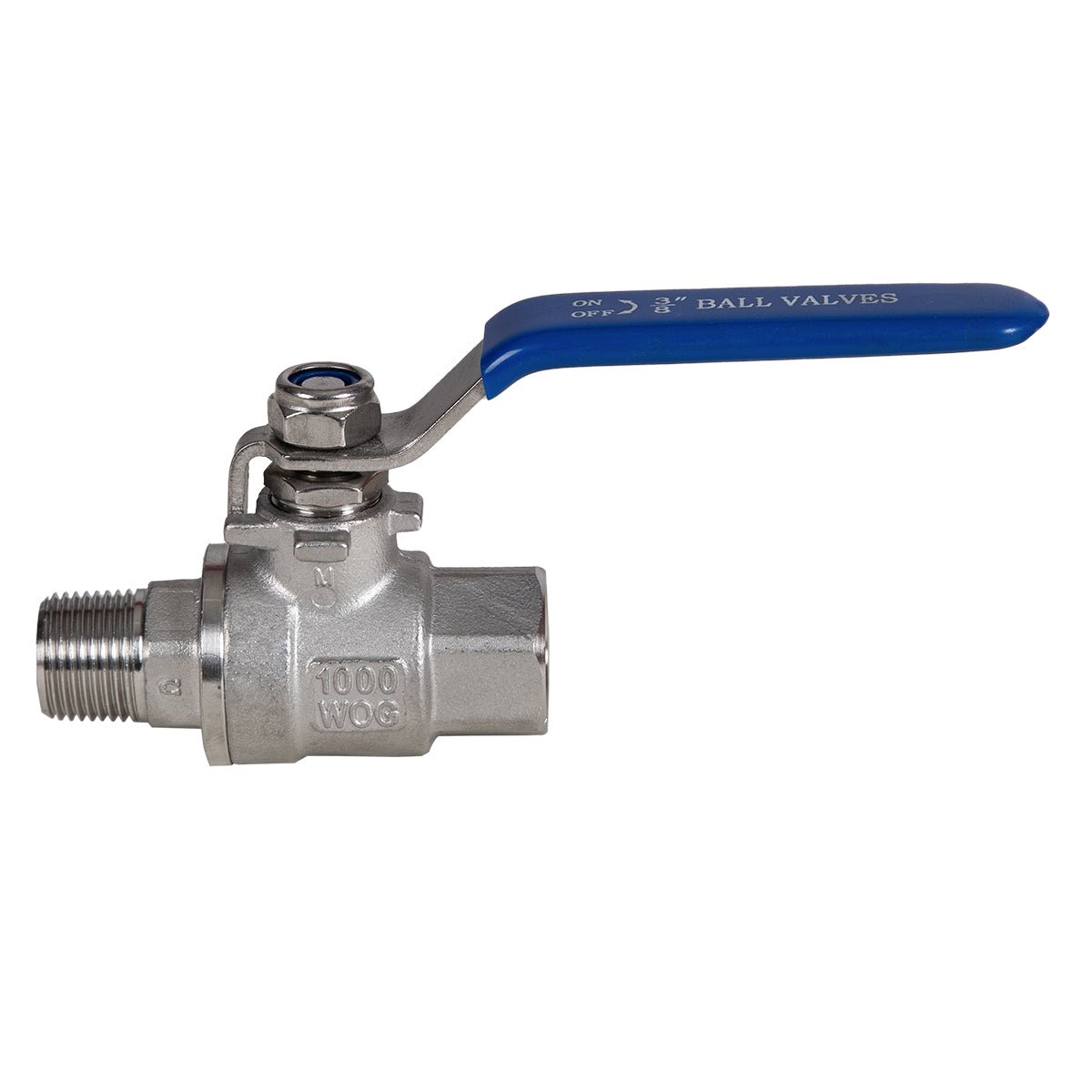

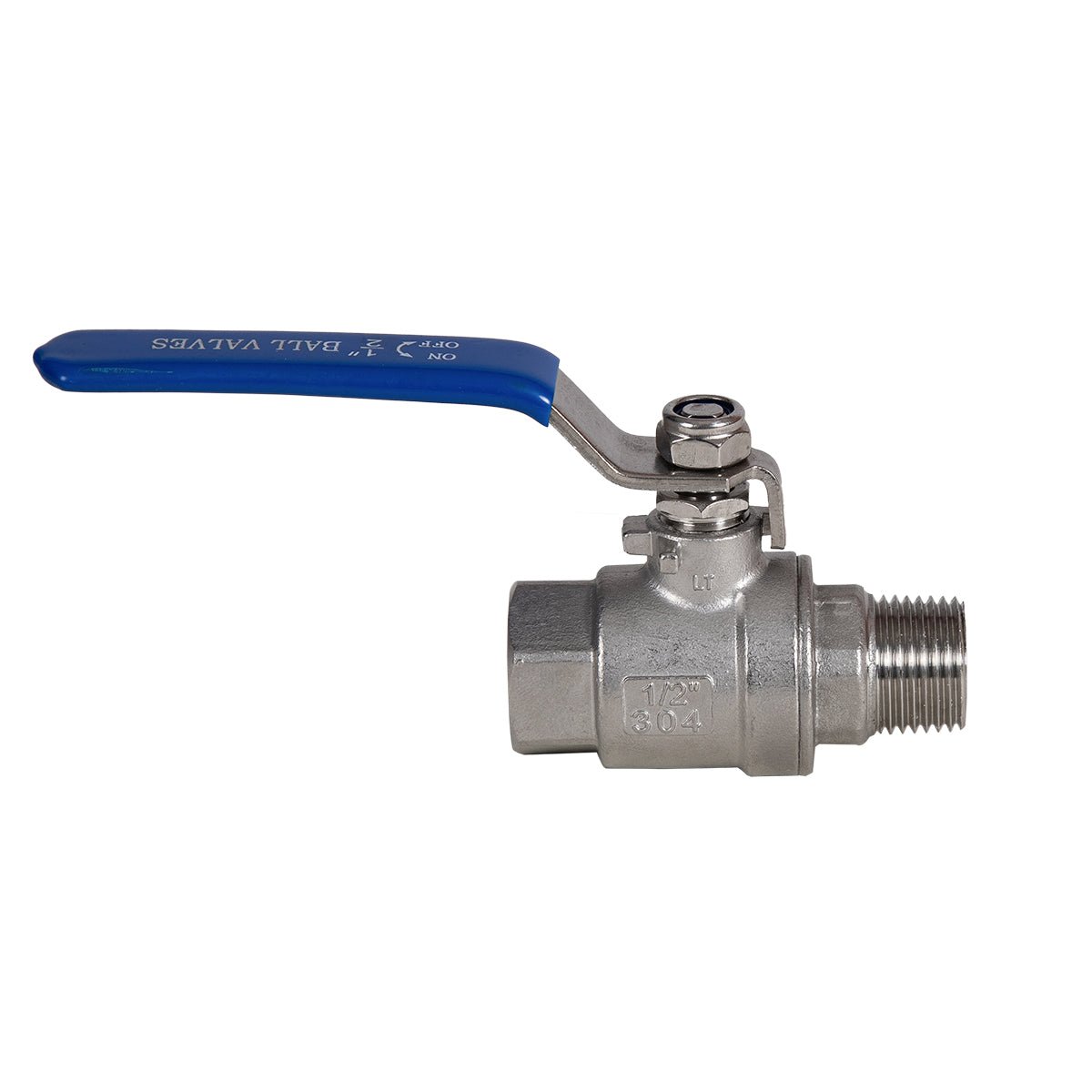

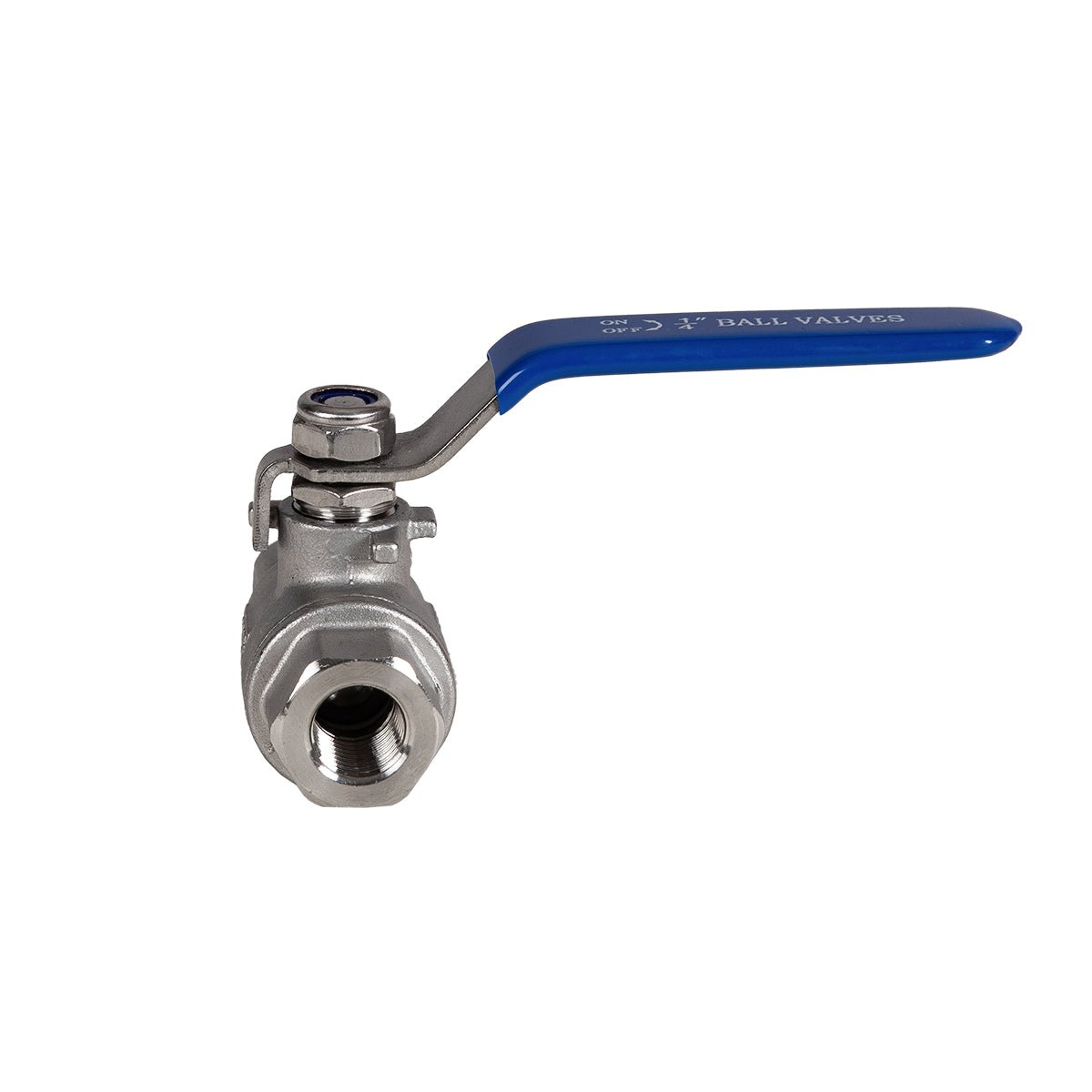

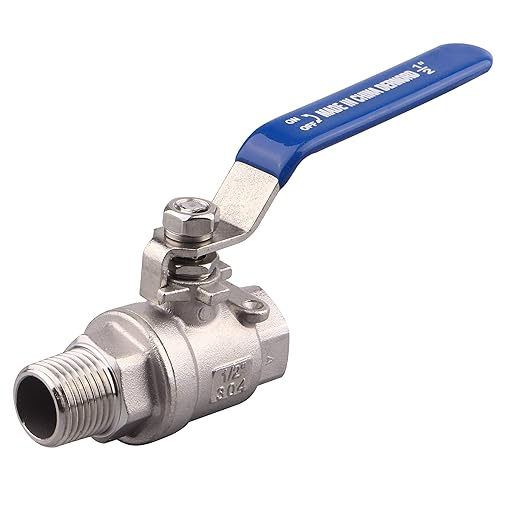

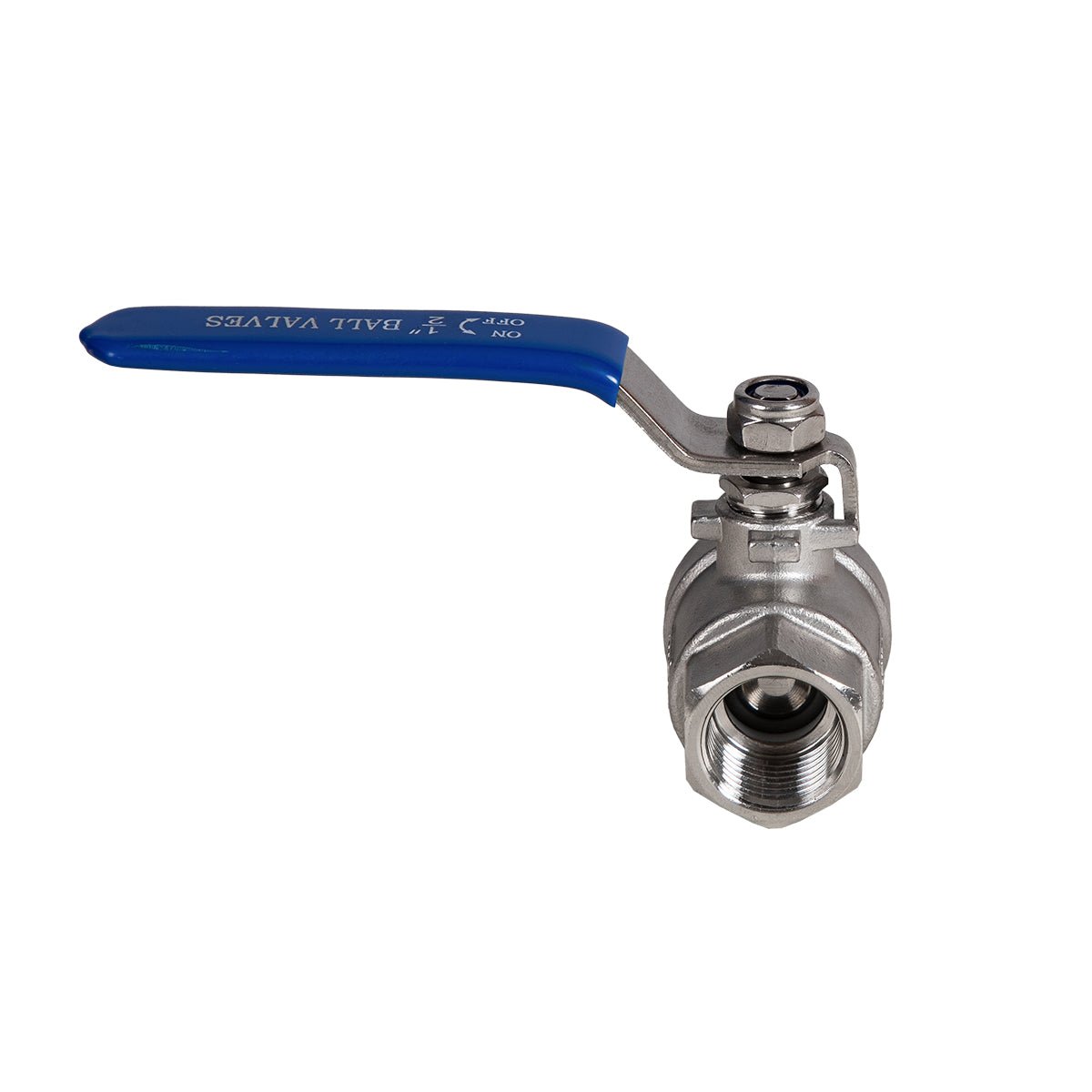

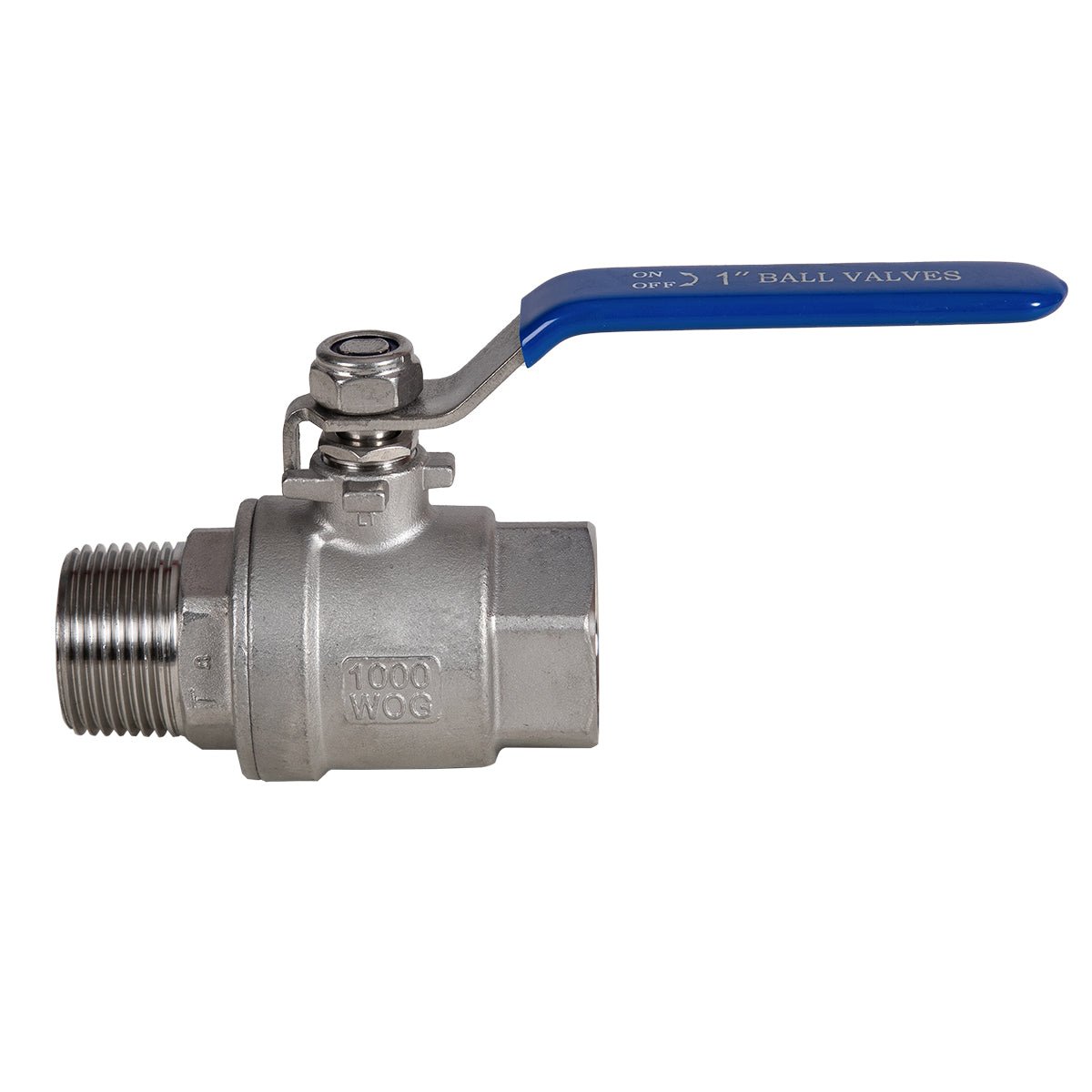

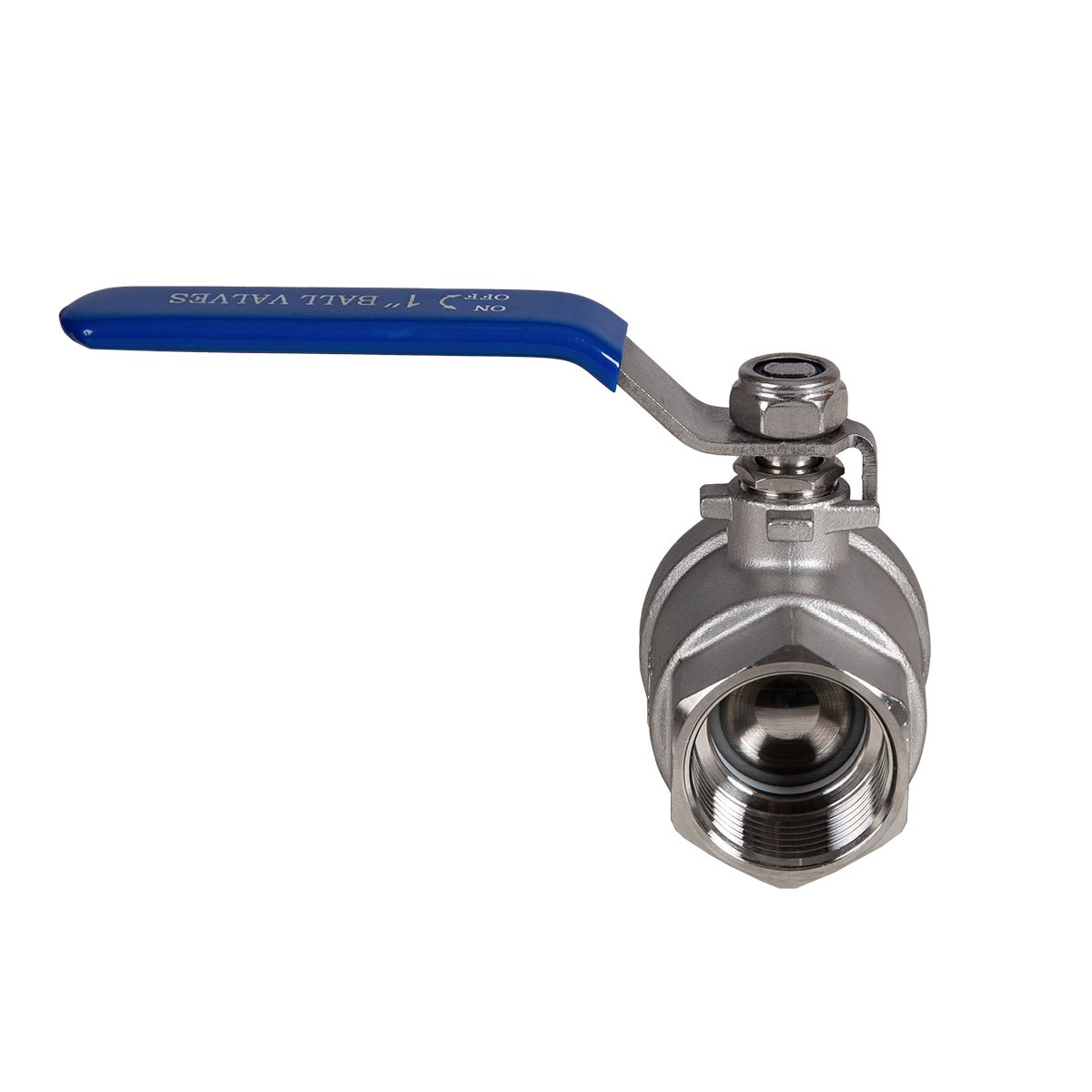

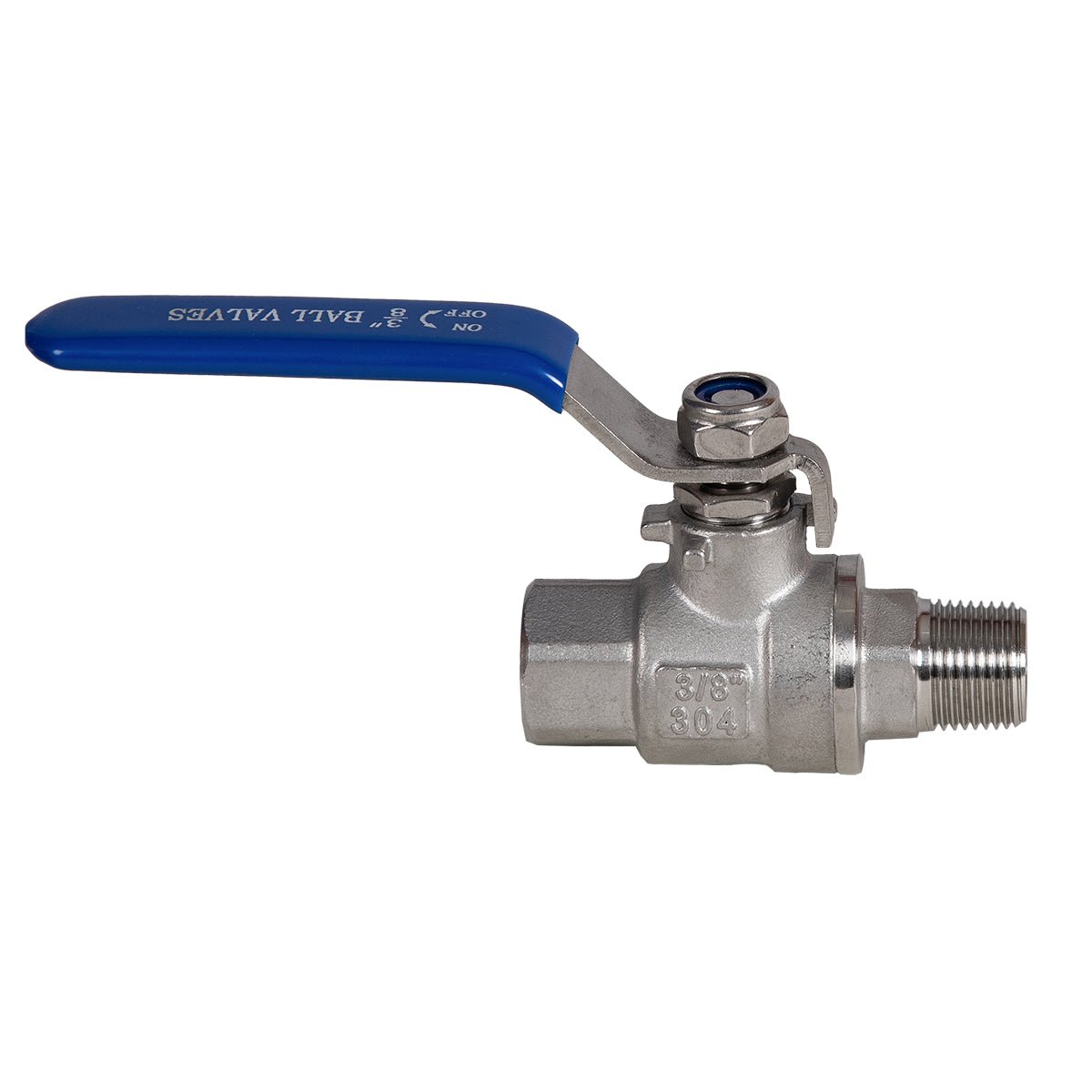

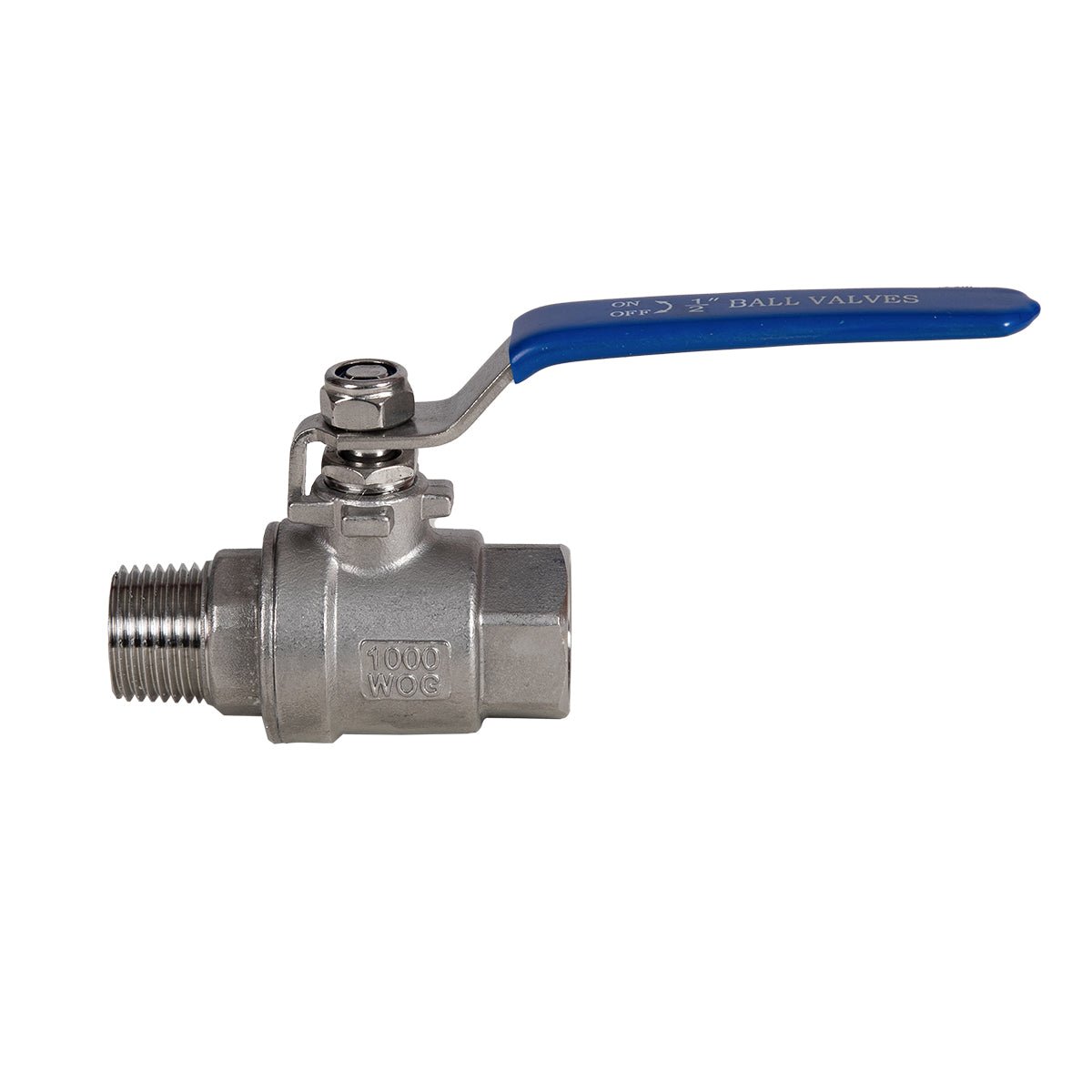

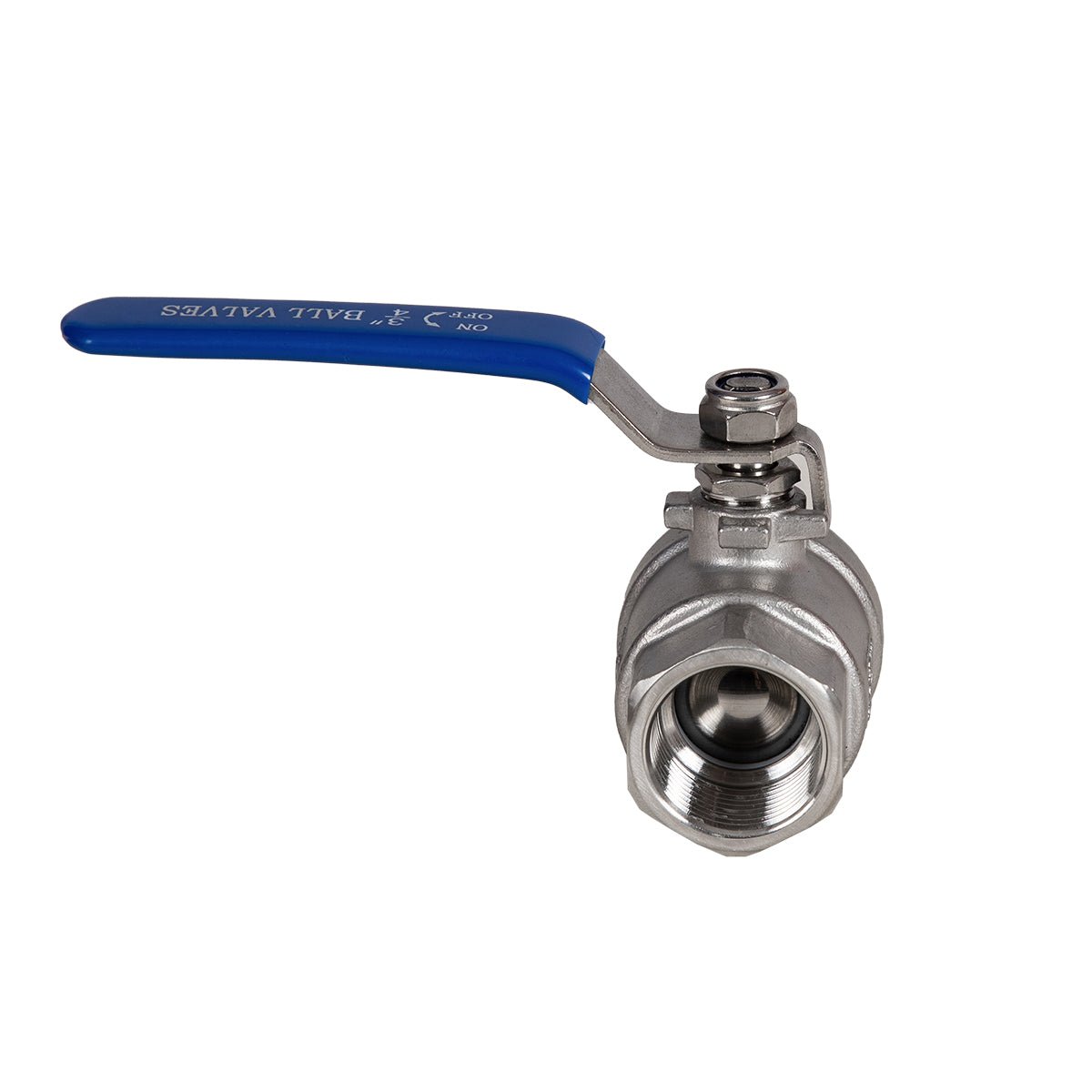

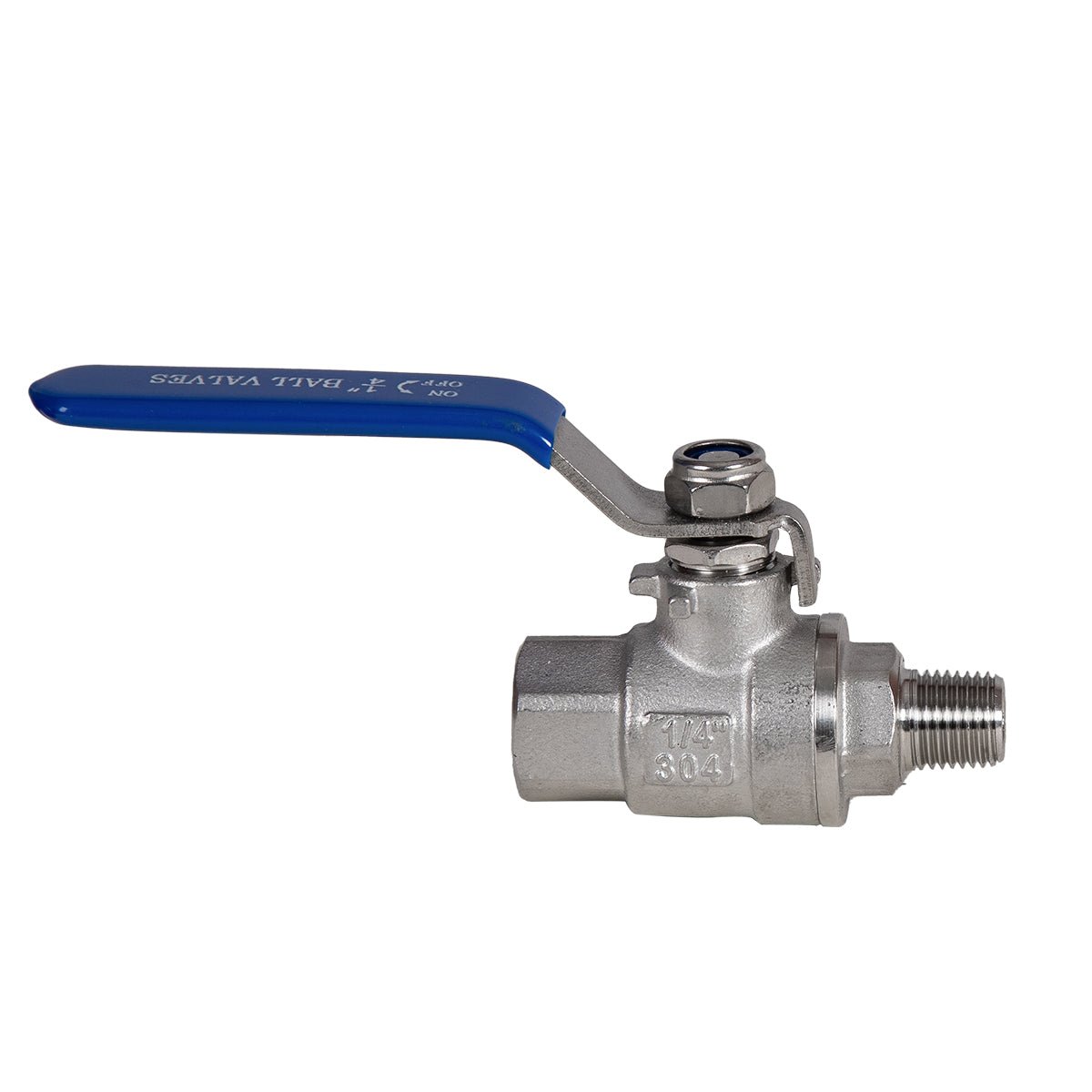

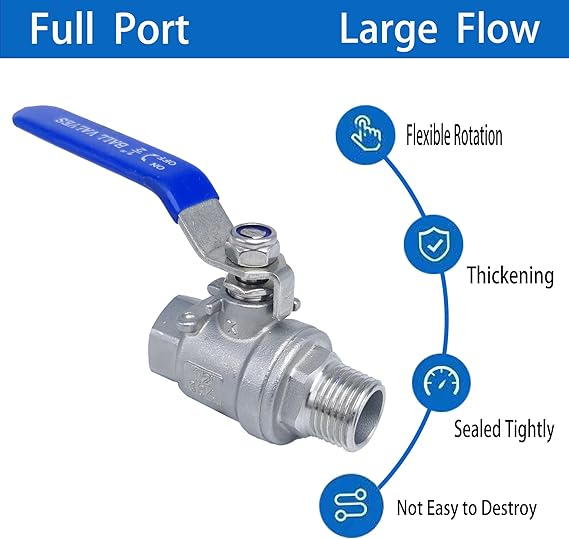

2 PC type stainless steel ball valve |
|
Connection |

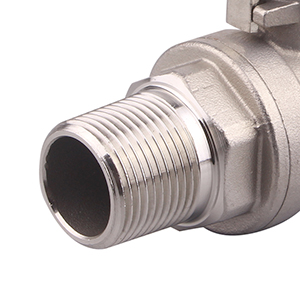

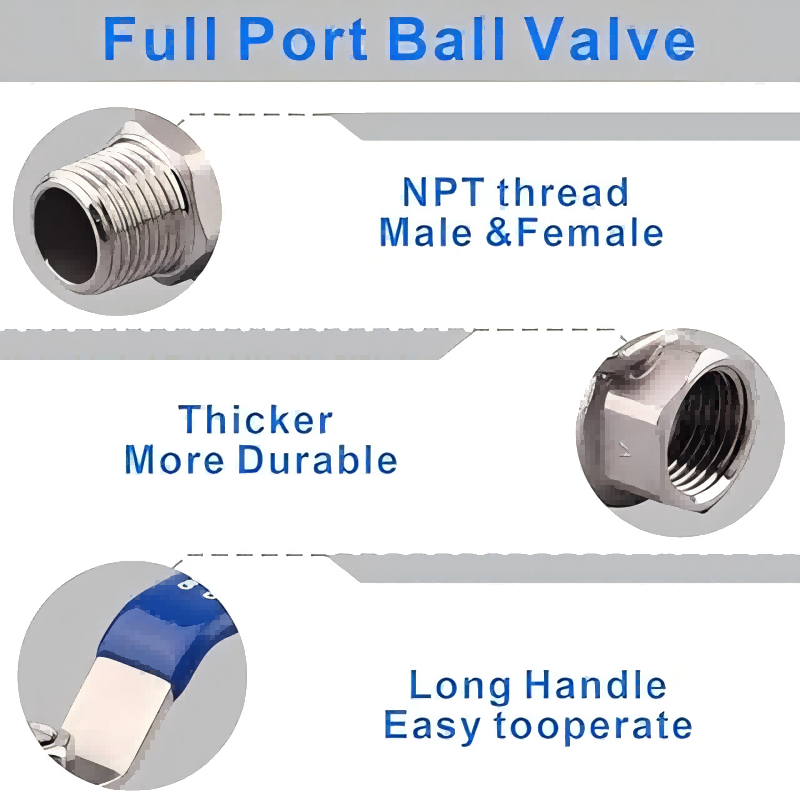

NPT male to female |
|
Working pressure |

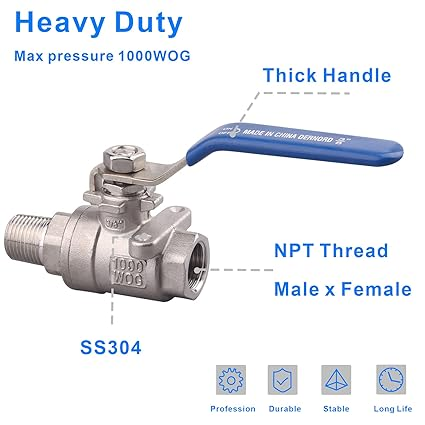

The max. Working pressure is 1000 psi. |
|
Working temperature |
The temp. range is 5℉ to 310℉. |
|
Handle |
blue vinyl insulation. |

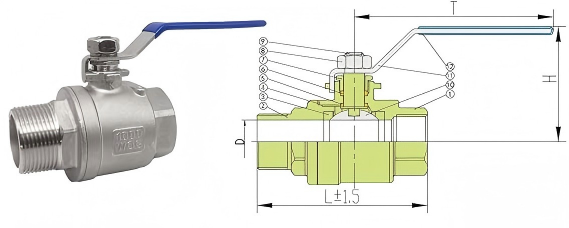

| Size | DN | D(CM) | L(CM) | H(CM) | T(CM) |
|---|---|---|---|---|---|
| 1/4" | 8 | 0.44 | 2.5 | 1.7 | 3.6 |
| 3/8" | 10 | 0.45 | 2.5 | 1.7 | 3.6 |
| 1/2" | 15 | 0.6 | 2.6 | 2.1 | 3.6 |
| 3/4" | 20 | 0.78 | 2.9 | 2.1 | 4.2 |
| 1" | 25 | 0.95 | 3.4 | 2.5 | 4.3 |
| 1-1/4" | 32 | 1.26 | 4.0 | 2.8 | 4.9 |
| 1-1/2" | 40 | 1.47 | 4.3 | 3.2 | 5.5 |
| 2" | 50 | 2 | 5.0 | 3.7 | 6.5 |
